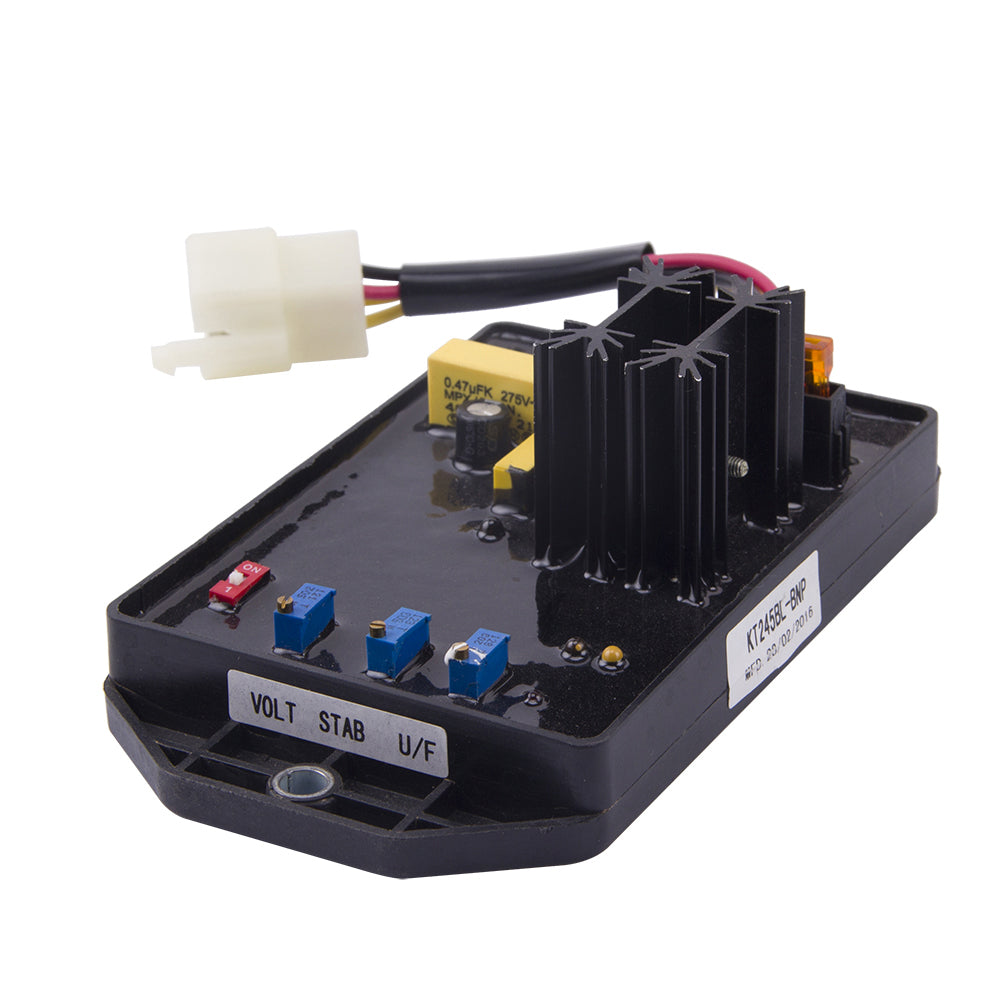

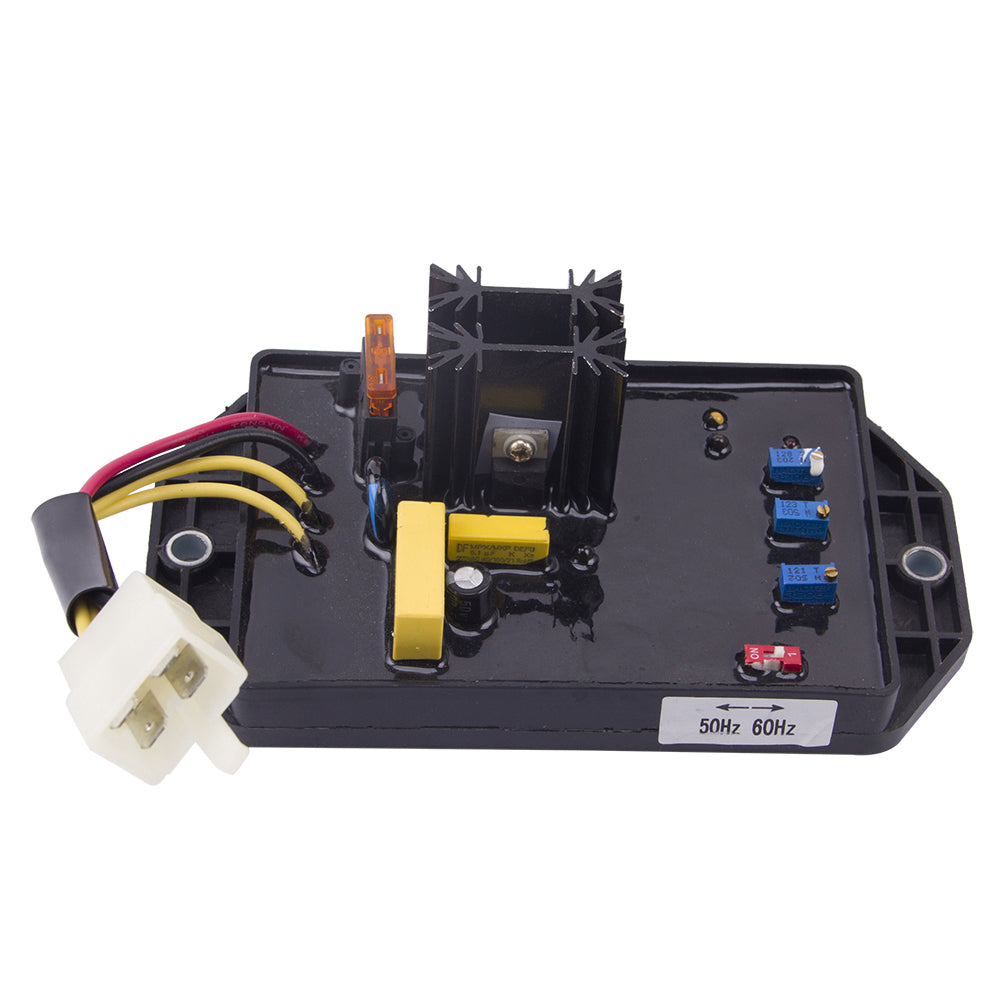

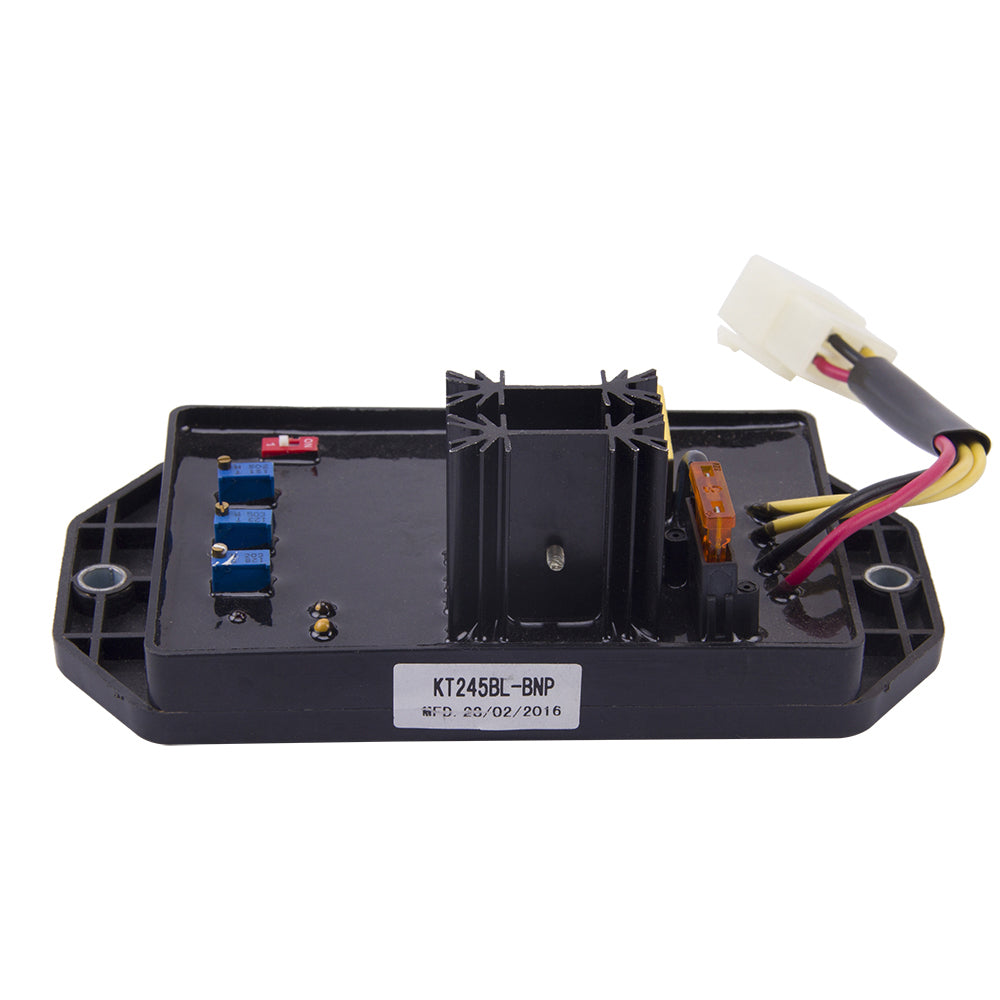

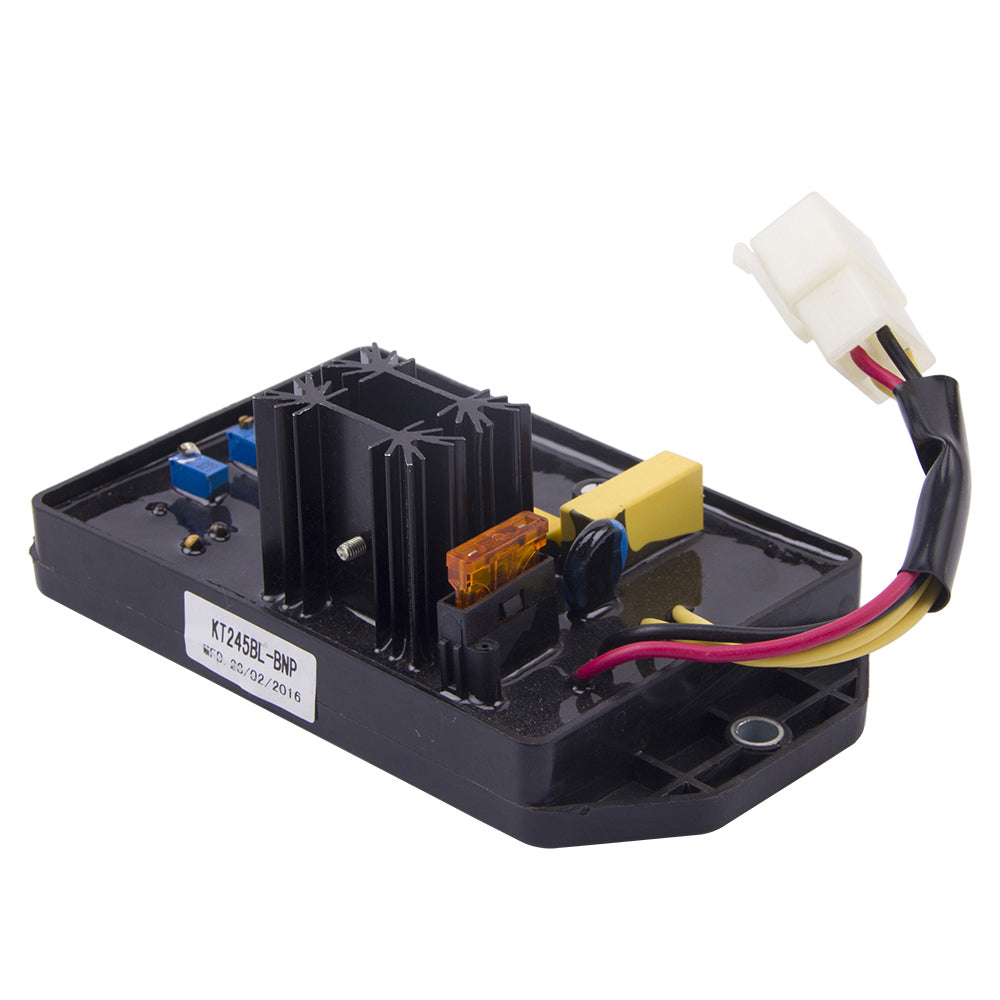

5-15KW 1 Phase and 3 Phase Universal Type AVR Brushless AVR Voltage Regulator Stabilizer 12KW-BL KT245BL-BNP

Technical Specifications for 12KW Brushless (BL) Model

| No. | Item                  | Parameter                          | Remarks |
|-----|-----------------------|------------------------------------|---------|
| **I. Generator Matching Parameters** | | | |
| 1   | Phase                | Universal (Single-phase/Three-phase) | |
| 2   | Auxiliary Winding & Sampling Voltage | 220V ±40V | |
| 3   | Excitation Starting Voltage | ≥3.5V | |
| 4   | Excitation Current   | ≤3.5A | |

| **II. AVR Parameters** | | | |
| 1   | Output Voltage       | Single-phase 230V, Three-phase 400V | |
| 2   | No-load Voltage Adjustment Range (VOLT) | ±20% (Generator output voltage) | |
| 3   | Applicable Generator Power | 5KW～15KW | |
| 4   | Output Voltage Variation | ≤1% | Adjustable based on generator parameters |
| 5   | Voltage Stability    | ≤±0.5V | |
| 6   | Temperature Rise      | ≤30℃ | |

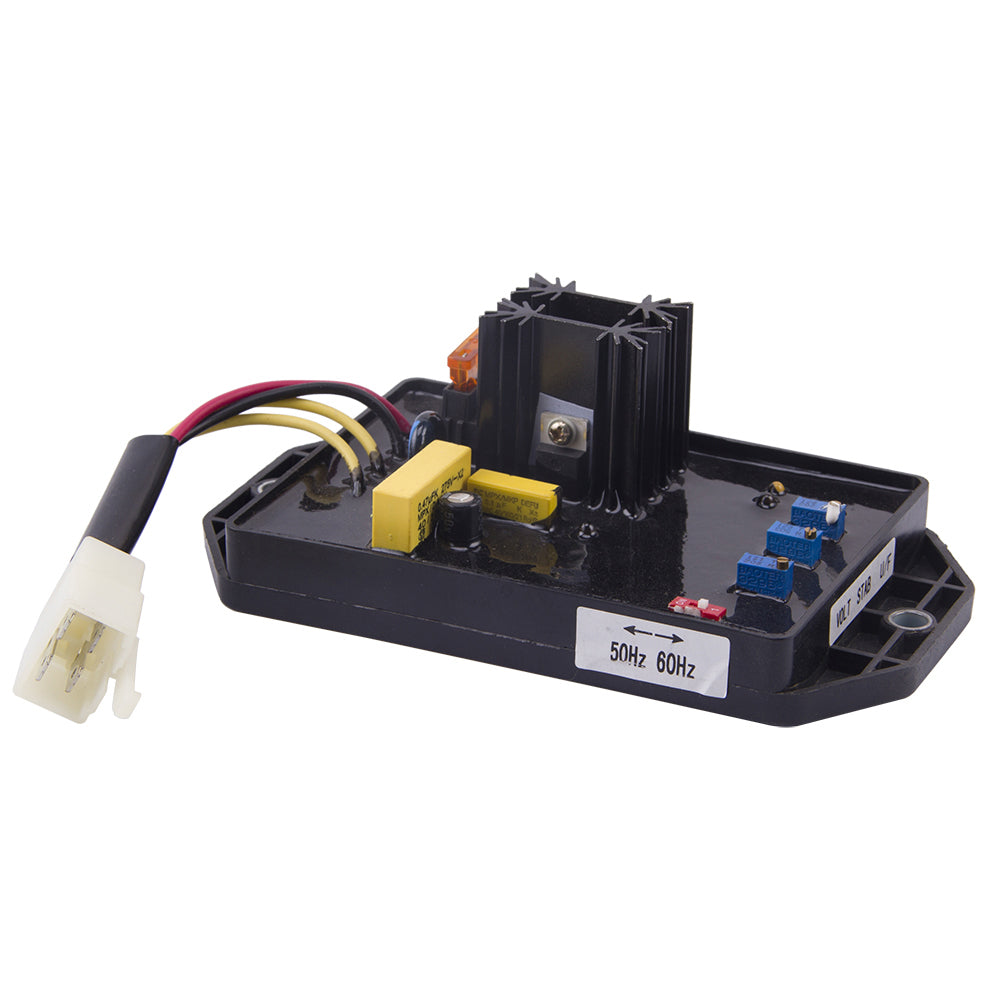

| 7   | Low-frequency Protection (U/F) | 50Hz (Protection point: 46Hz), 60Hz (Protection point: 56Hz) | Toggle switch |
| 8   | Stability Adjustment (STAB) | Fine-tune for stable output voltage | |

| **III. Installation** | | | |
| 1   | Connector            | Auxiliary winding sampling & excitation: 7 0413-6.3-11 | |
| 2   | Wire Color           | Auxiliary winding sampling: Yellow (220V), Excitation: Red (positive), Black (negative) | |
| 3   | Wiring              | Wire diameter: φ0.75mm², Length: 100mm | Extendable up to 450mm |

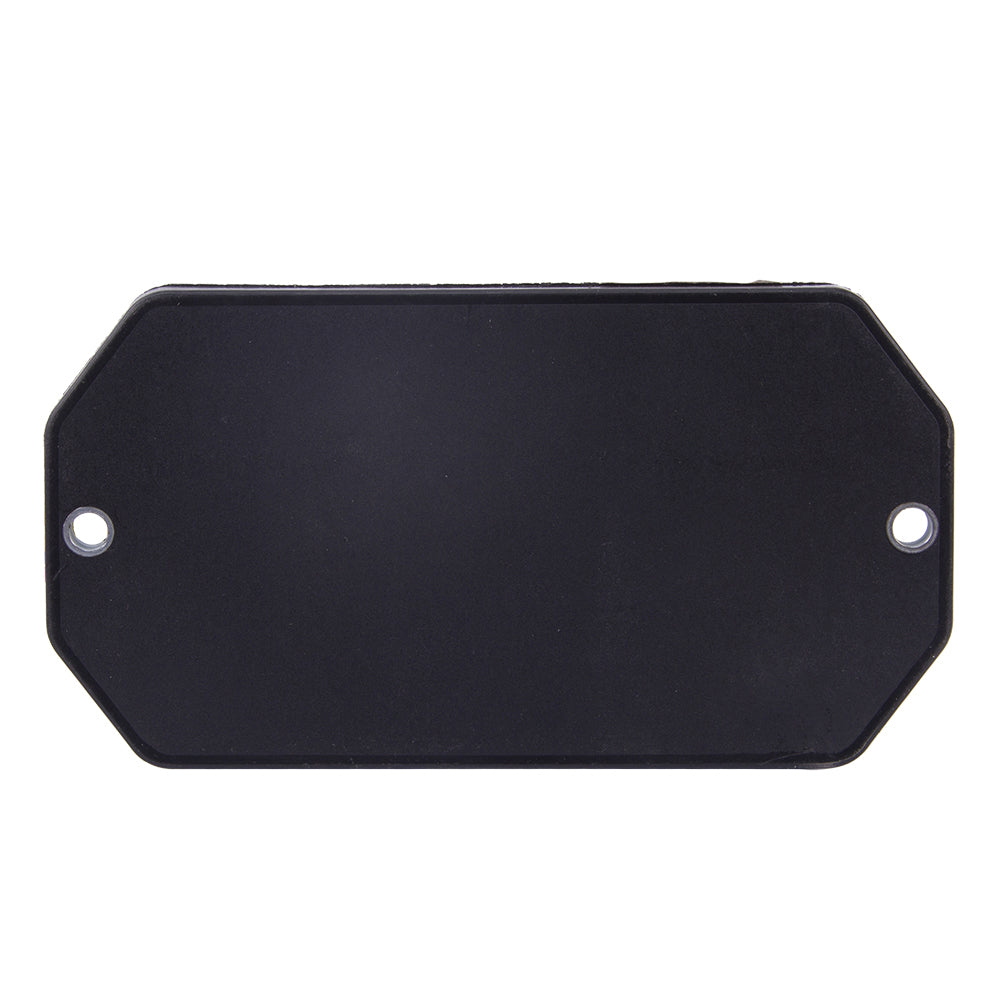

| 4   | Mounting Holes       | Hole diameter: φ6.0mm, Hole spacing: 133mm | |
| 5   | Dimensions           | Rectangular: Max. size 148*78*50mm | |
| 6   | Weight               | 380g | |
