Automatic Voltage Regulator Sensing Input 120V or 240V

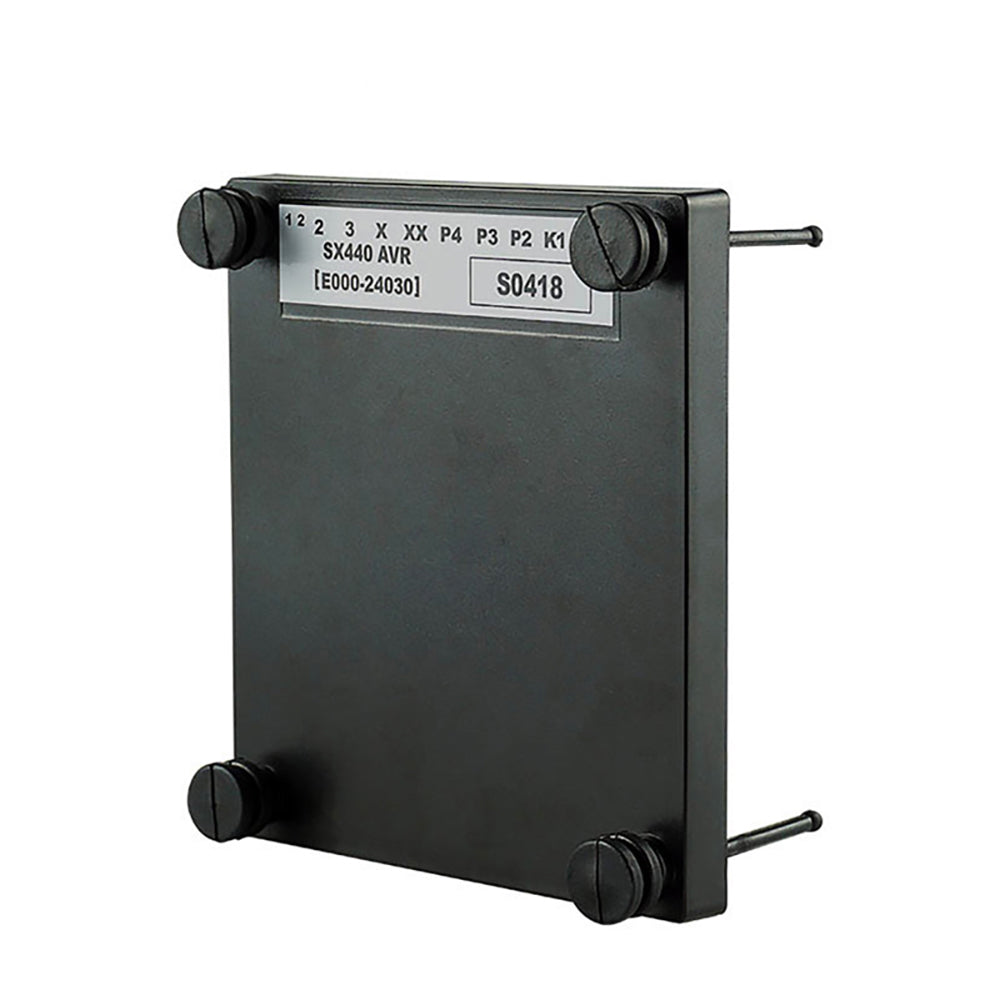

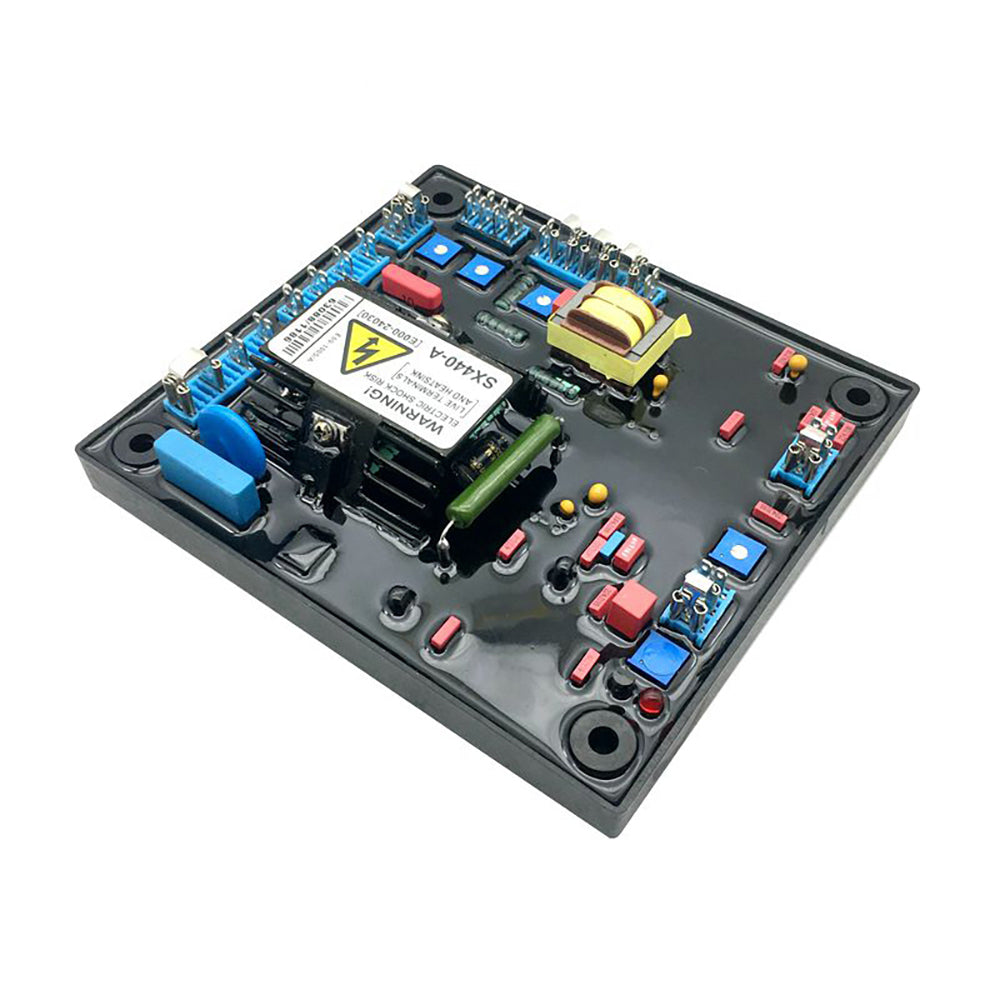

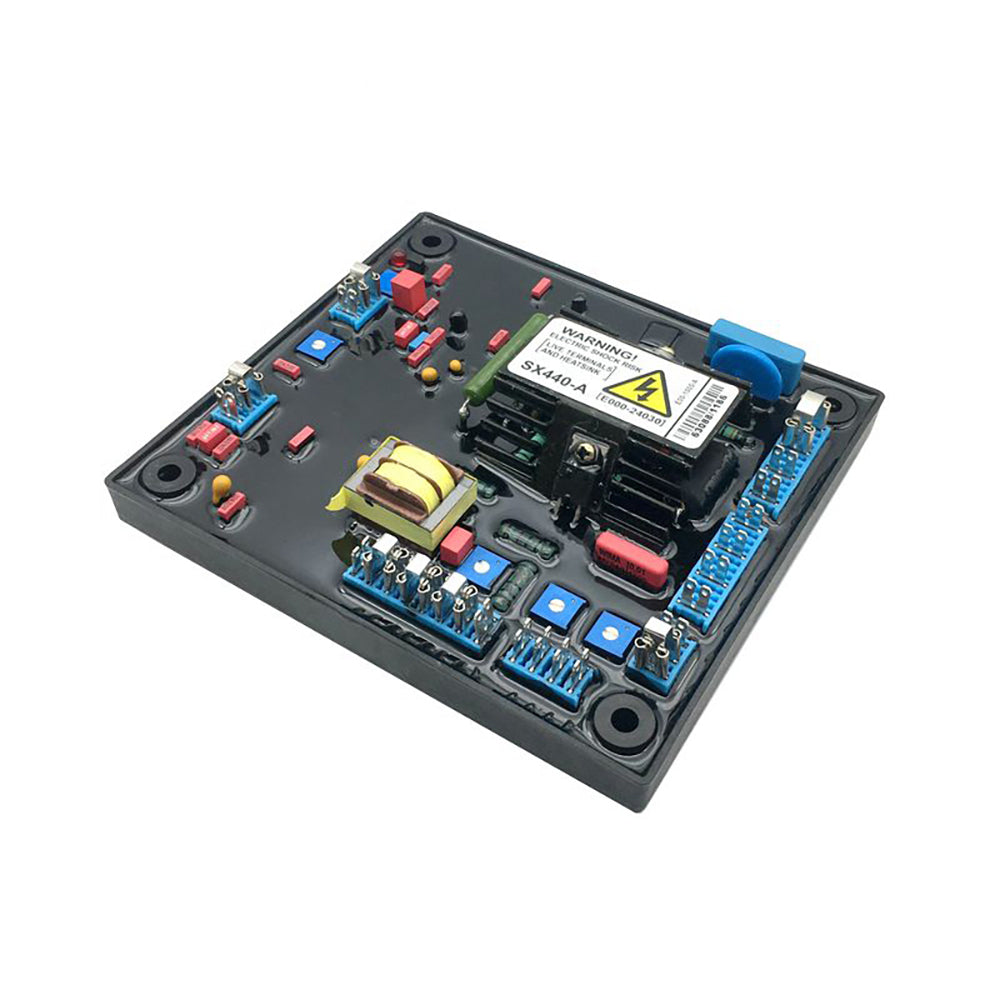

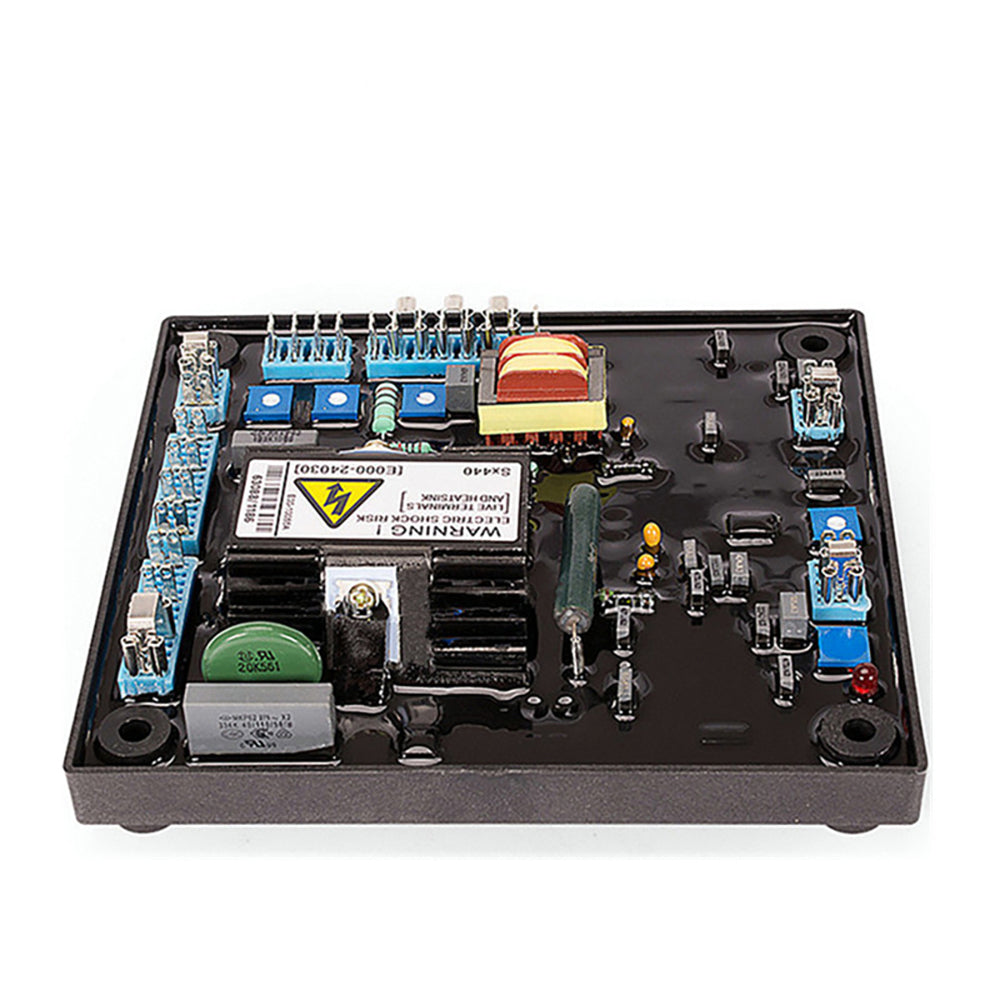

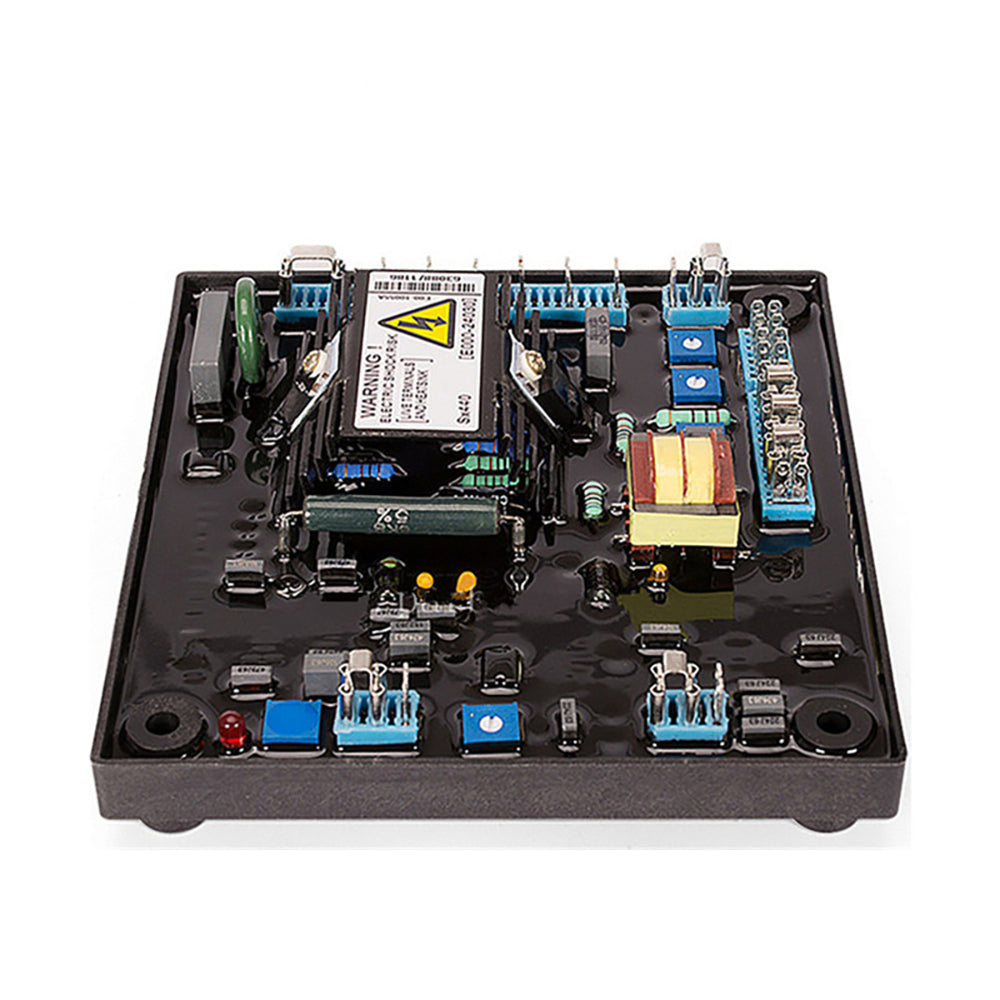

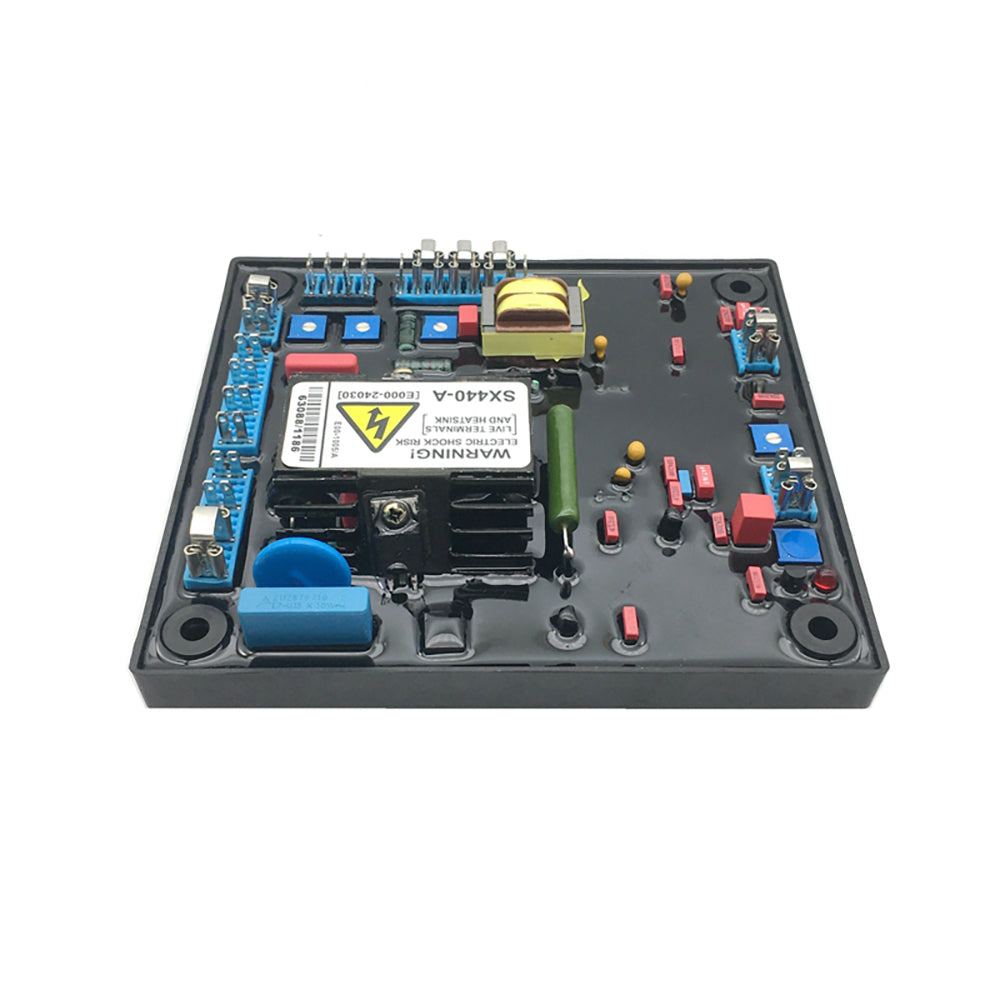

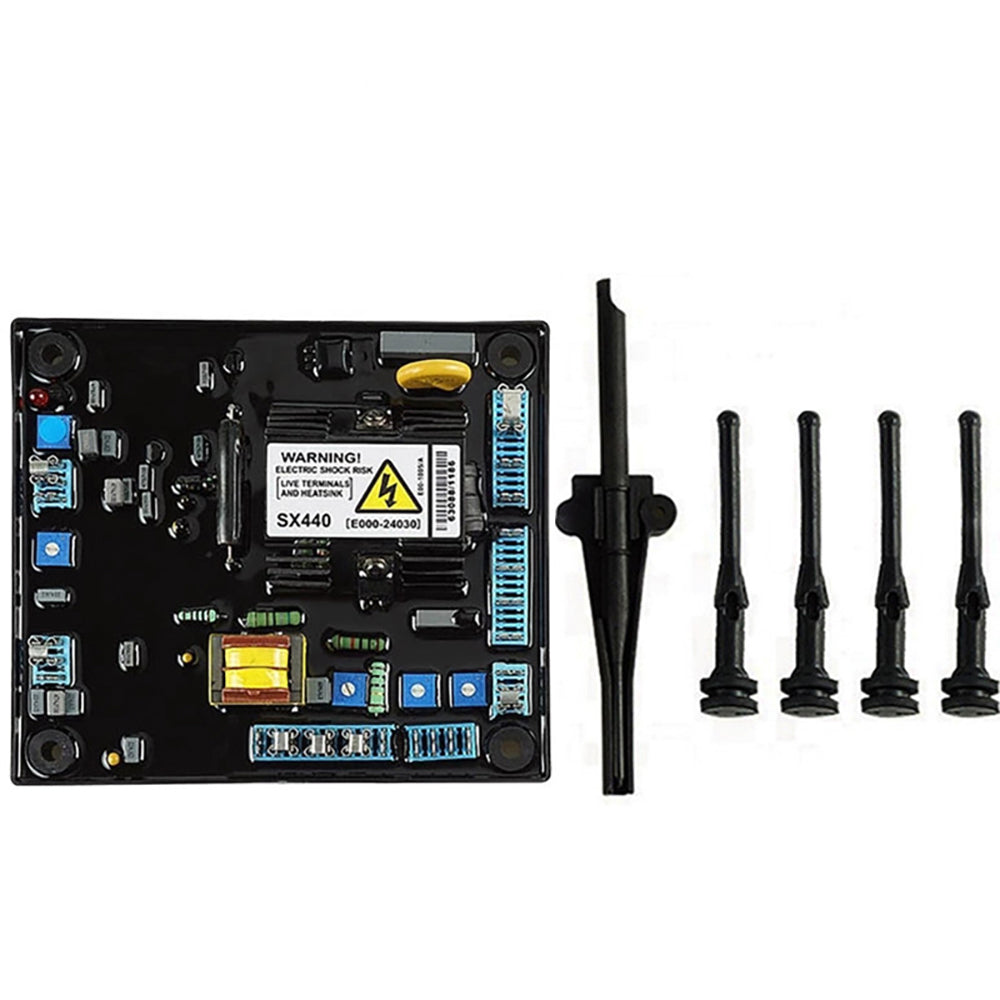

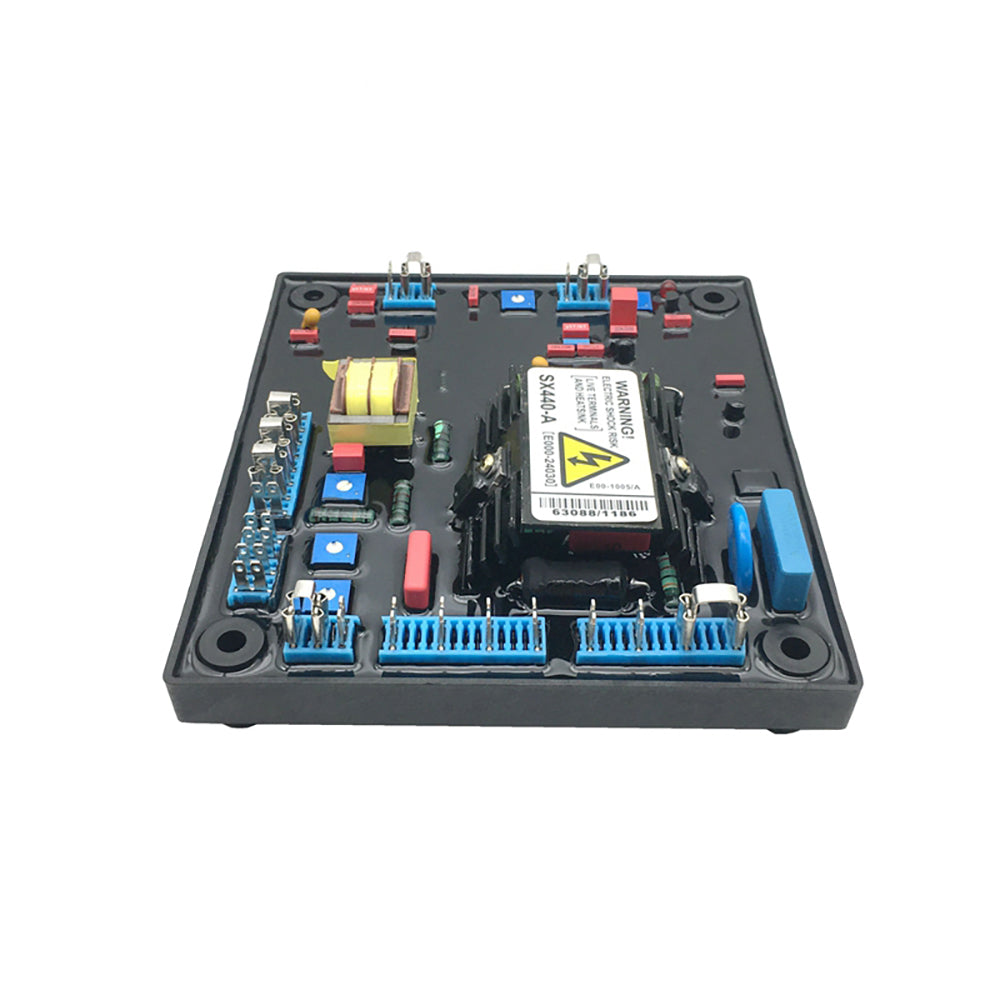

SX440 self excited brushless type genset voltage regulator is a compatible replacement for SX440.
|
Product Name
|
AVR Circuit Diagram Sx440 Price Discount
|
|
|
Sensing/Power input
|
Voltage
|
190 to 264 Vac,1 phase 2 wire jumper selectable
|
|
Frequency
|
50/60 Hz jumper selectable
|
|
|
Output
|
Voltage
|
Max. 90 Vdc @ 207 Vac input
|
|
Current
|
Continuous 4A,Intermittent 6A for 10 seconds
|
|
|
Voltage Regulation
|
< +/-1% (with 4% engine governing)
|
|
Features
* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll off protection
* With under frequency LED indicator
