Diesel Generator Controller Genset Control Module DC10G Manual Key Start
Diesel Generator Controller Genset Control Module DC10G Manual Key Start
Free Shipping to 63 countries (USA, Canada, Japan, Taiwan, etc). 5% discount applies to 1 pcs, 10% discount to 2 pcs!
Couldn't load pickup availability

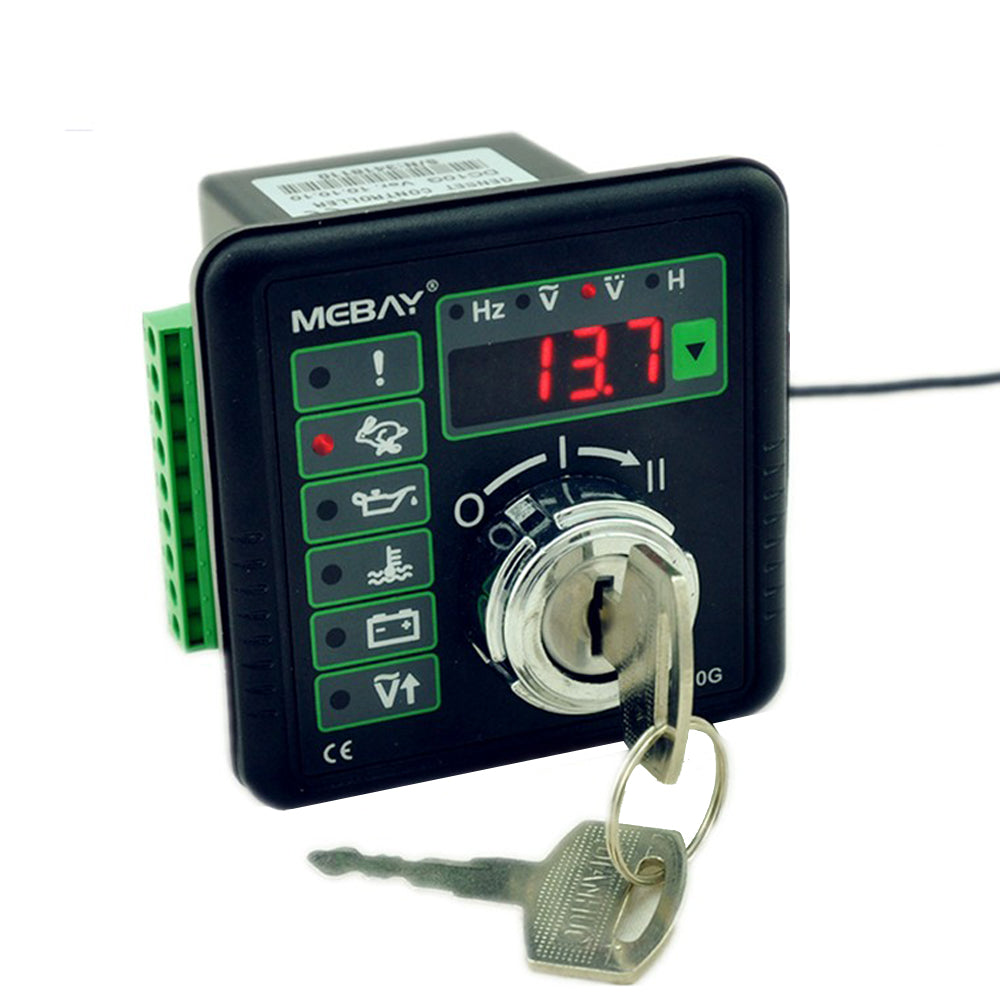

Controller DC10G is designed as one of the engine manual start controller.

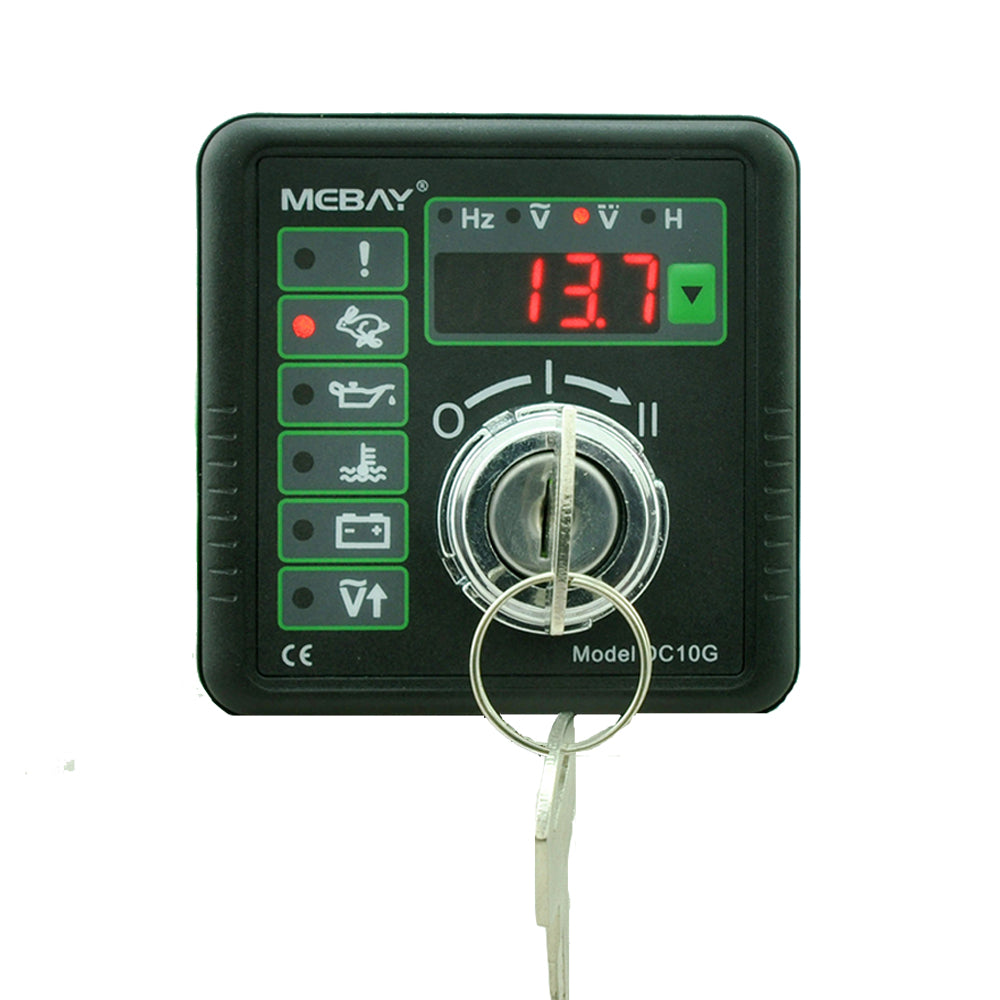

The Hz,Volt, Battery voltage and accumulation time can be displayed through the front face LED screen. This controller is also with various kinds of stop and alarm indications to monitor the genset status.Besides, it can also connect with PC so that parameters can be set through Computer to equip for more different gensets.
Parameters Display
Generator voltage V
Generator Frequency Hz
Battery voltage V
Total running time H
Protection
over speed
under speed
Low oil pressure
High water temperature
External emergency alarm
Over generator voltage
Charging failure
Specification
|
Options |
Parameters |
|
Working voltage |
DC8~33V Continuous |
|
Power consumption |
Standby：24V：MAX 1W |
|
Working：24V：MAX 2W |
|
|
AC Voltage Input |
1P2W 15VAC-300VAC 50/60Hz |
|
Rotate speed sensor Frequency |
300-10000Hz |
|
MAX Accumulating Time |
9999.9Hours（Min Store time:6min） |
|
Fuel Relay Output |
16 Amp DC+VE Supply voltage |
|
Start Relay Output |
10 Amp DC+VE Supply voltage |
|
Alarm output 1 |
16 Amp DC+VE Supply voltage |
|
Excitation output |
Max 80mA DC+VE supply voltage |
|
Switch value input |
Available if connecting with Battery - |
|
Working condition |
-30-70℃ |
|
Storage condition |
-40-85℃ |
|
Insulation strength |
Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. |
|
Overall dimension |
78mm×78mm×72mm |
|
Panel cutout |
67mm×67mm |
|
Weight |
280g |
