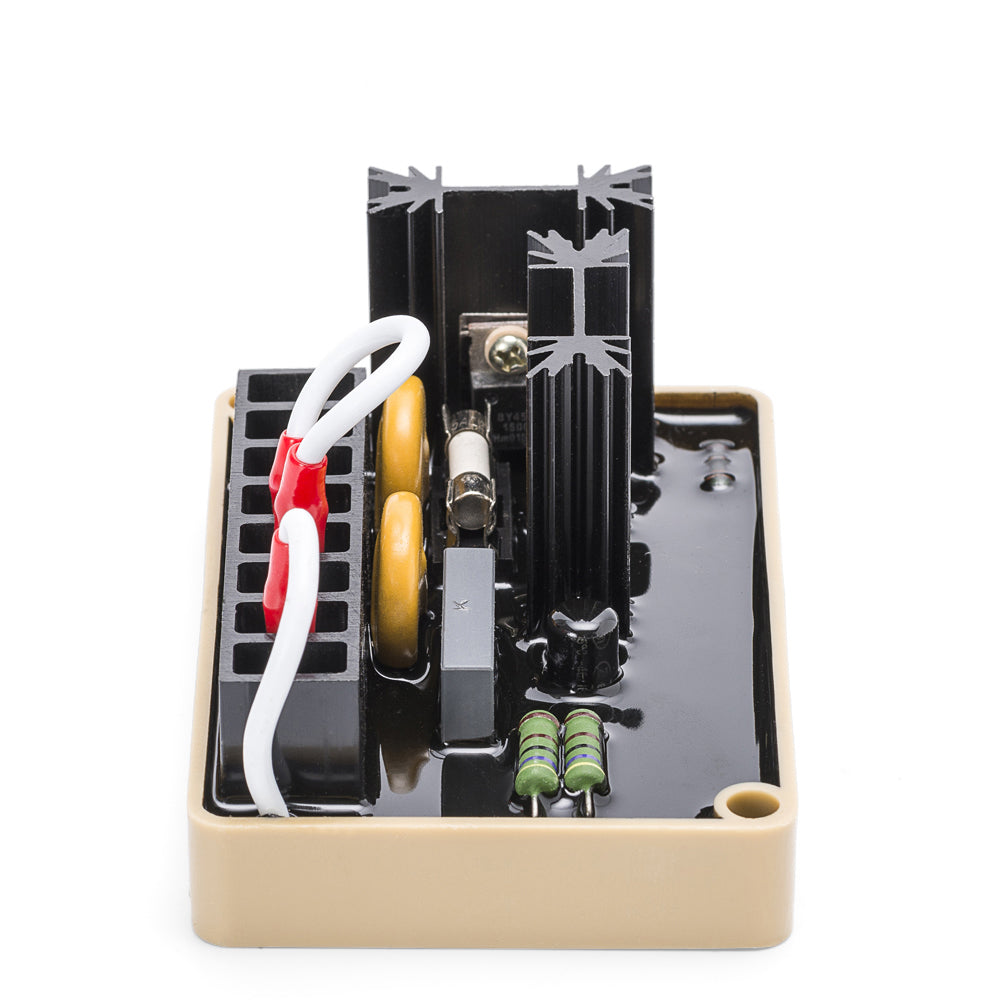

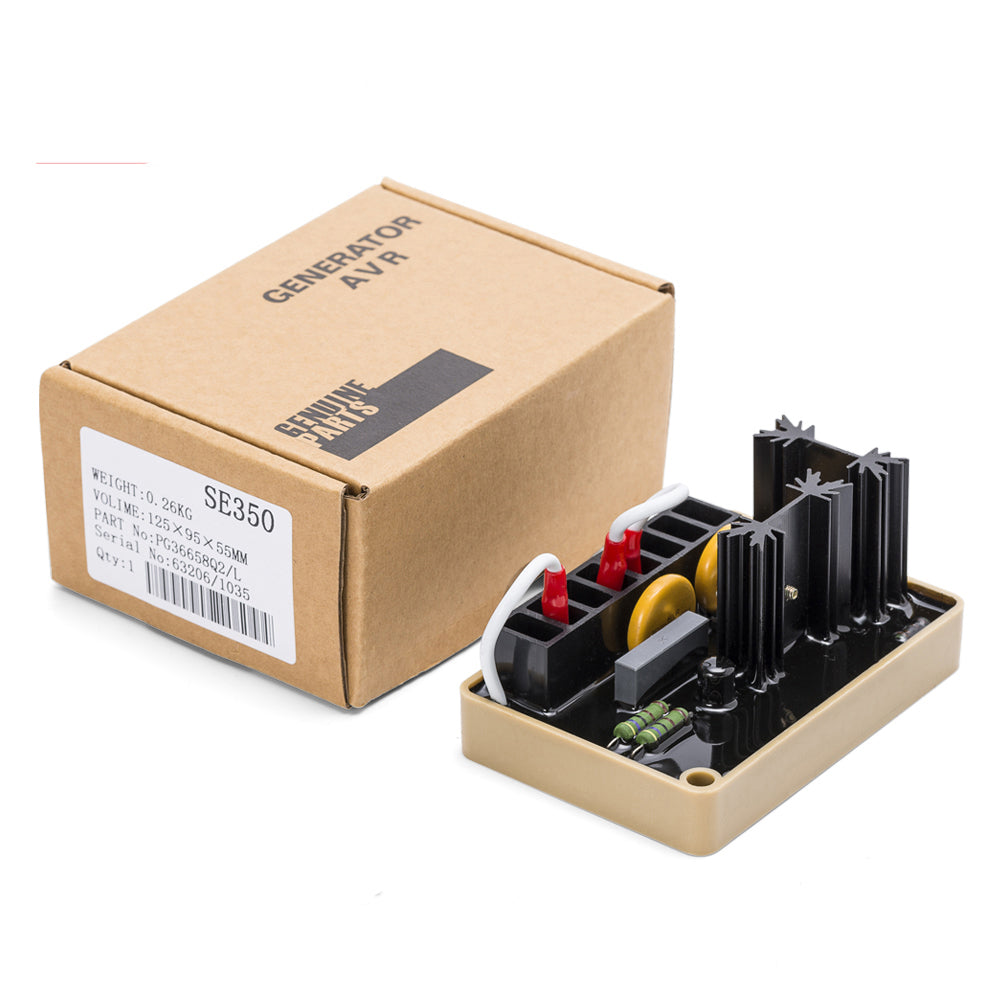

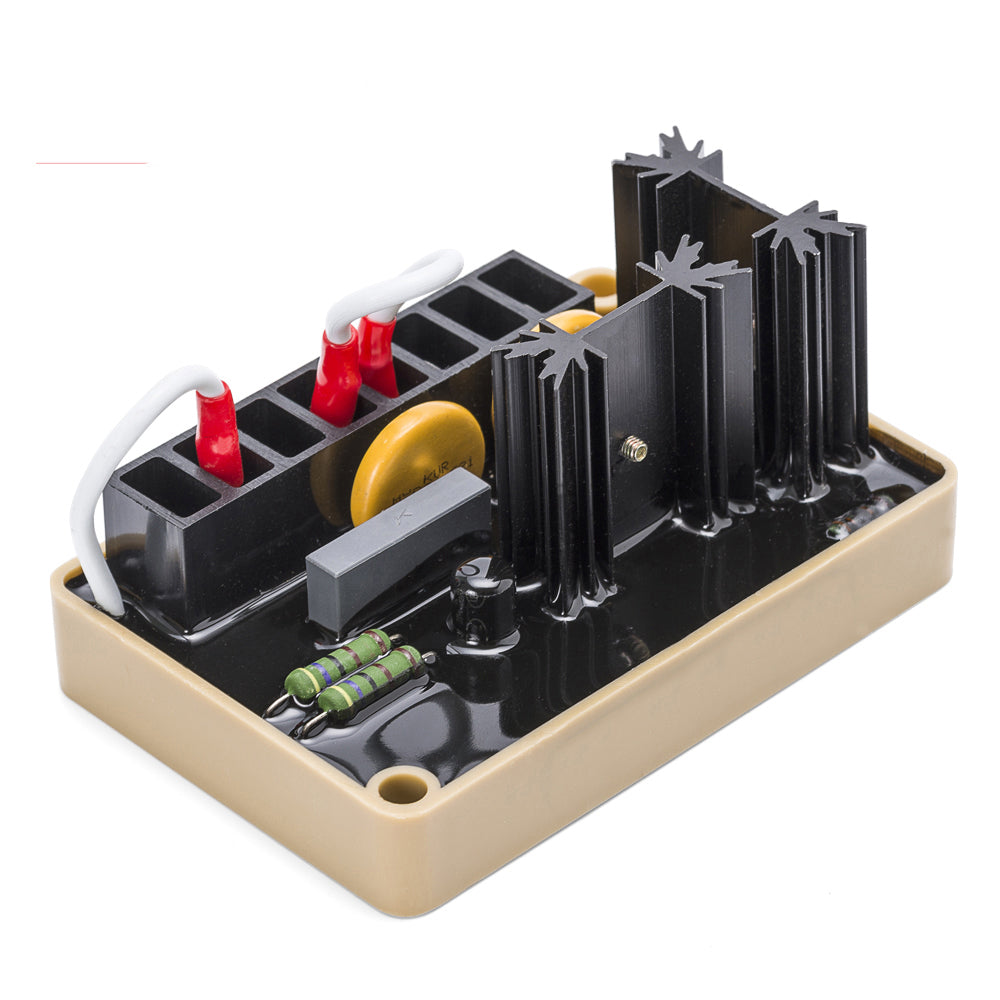

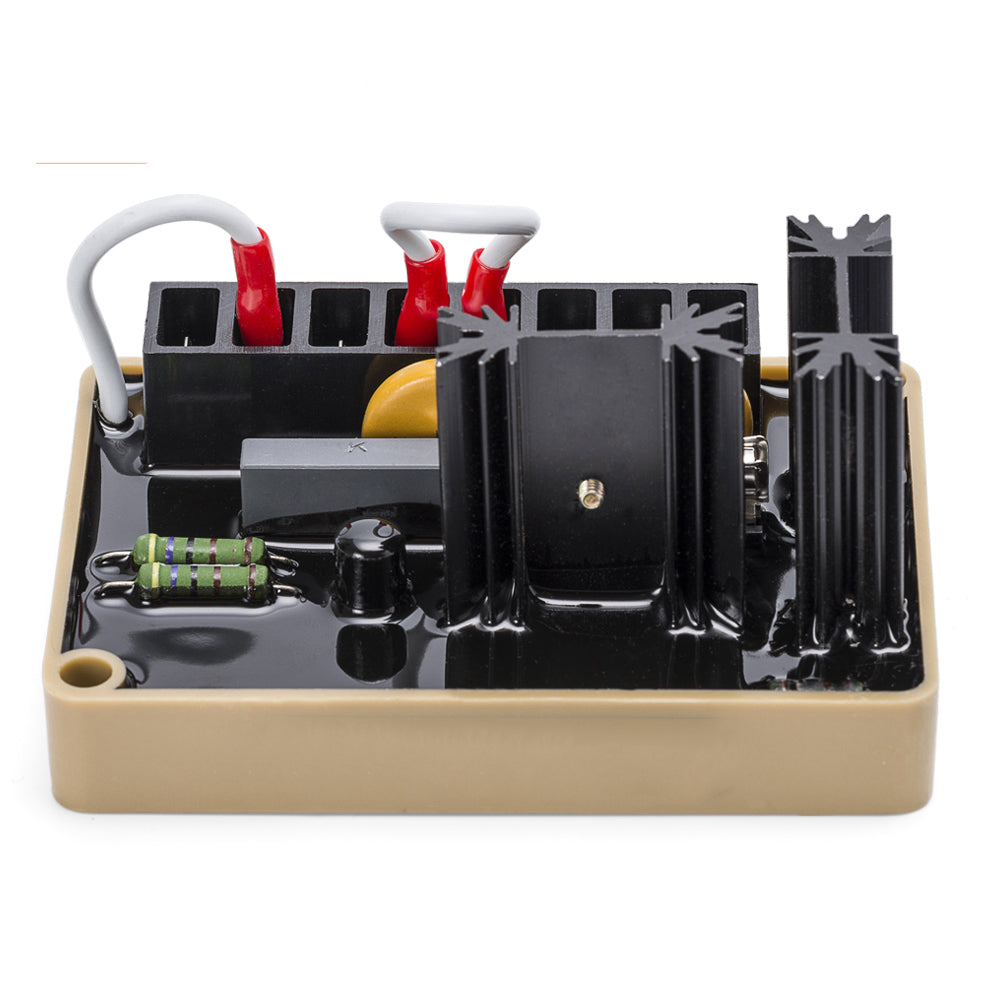

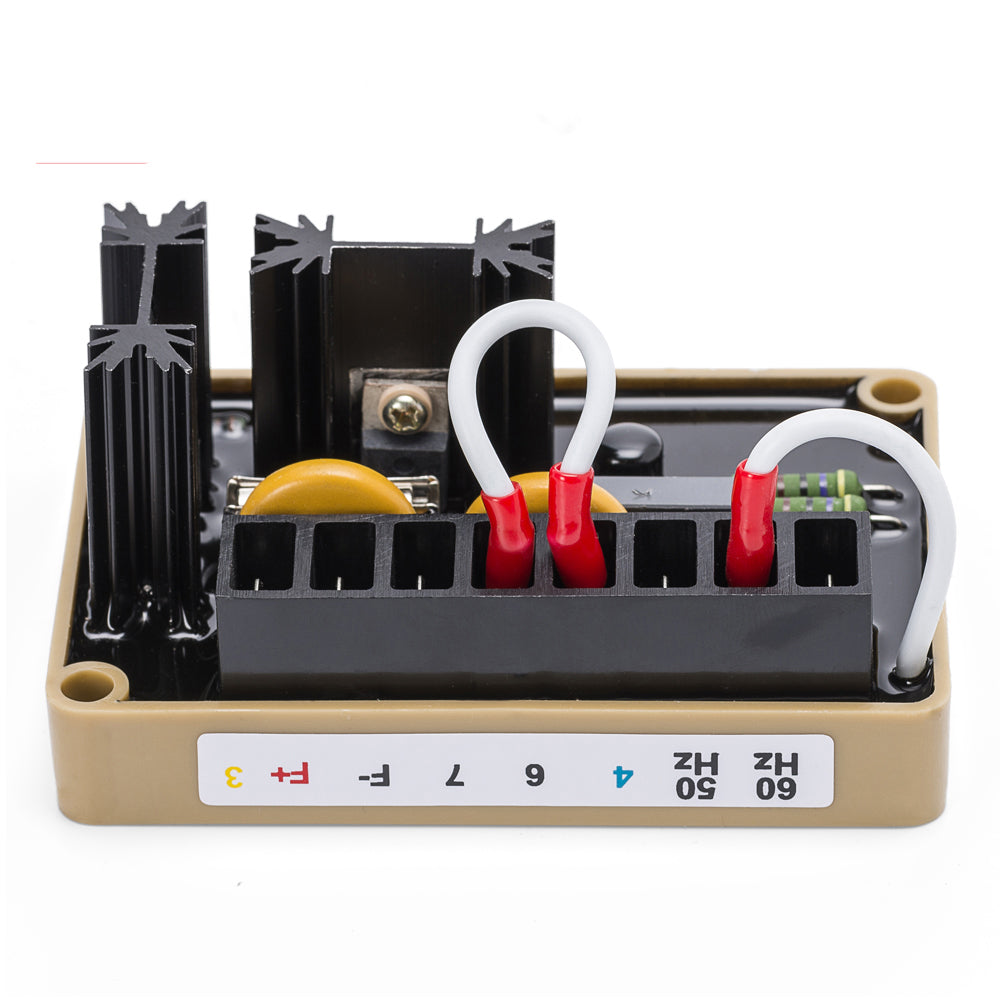

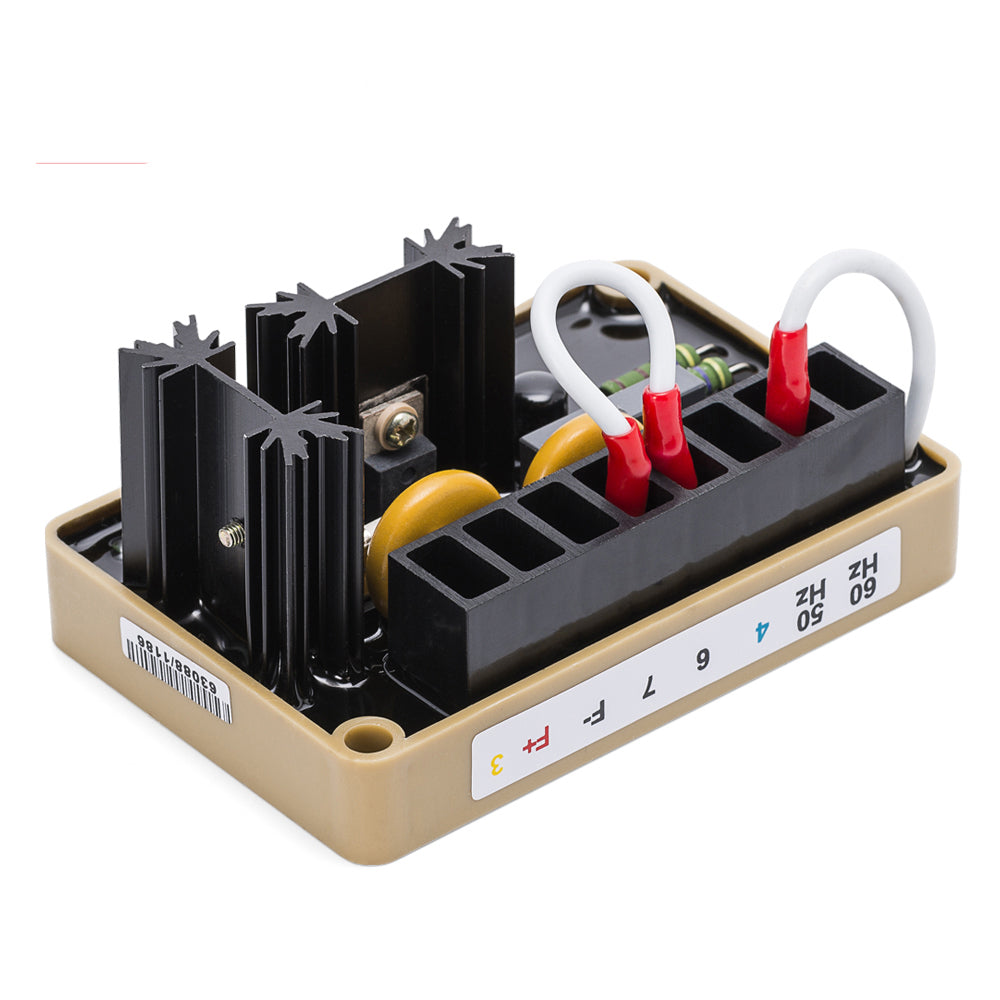

The SE350 voltage regulator is an encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field
SPECIFICATION
SE350 REGULATOR
Sensing:& Power Input
190-240Vac
Burden
500VA
Output Power-Continuous
73 V dc at 3.5 A dc (255w)
Output Power - Forcing(240 Vac Input Power)
105 V dc at 5 A dc (525w)
Regulation
1.00%
Remote Voltage Adjustment Range
± 10% with 2000 ohm rheostat ± 5% with 1000 ohm rheostat
Frequency Compensation
Adjustable
Roll off frequency
54-61 Hz for 60 Hz
45-51 Hz for 50 Hz
Operation
Weight 6.5oz
Operating Temperature
- 40°C to + 60° C
Storage Temperature
-65°C to + 85° C
Power Dissipation
8 watts maximum
Size
3.94" LX2.66"WX2.20: H
Voltage Buildop
Internal provisions forautomatic voltage build up from generator residual voltage as low as 10 Vac.
