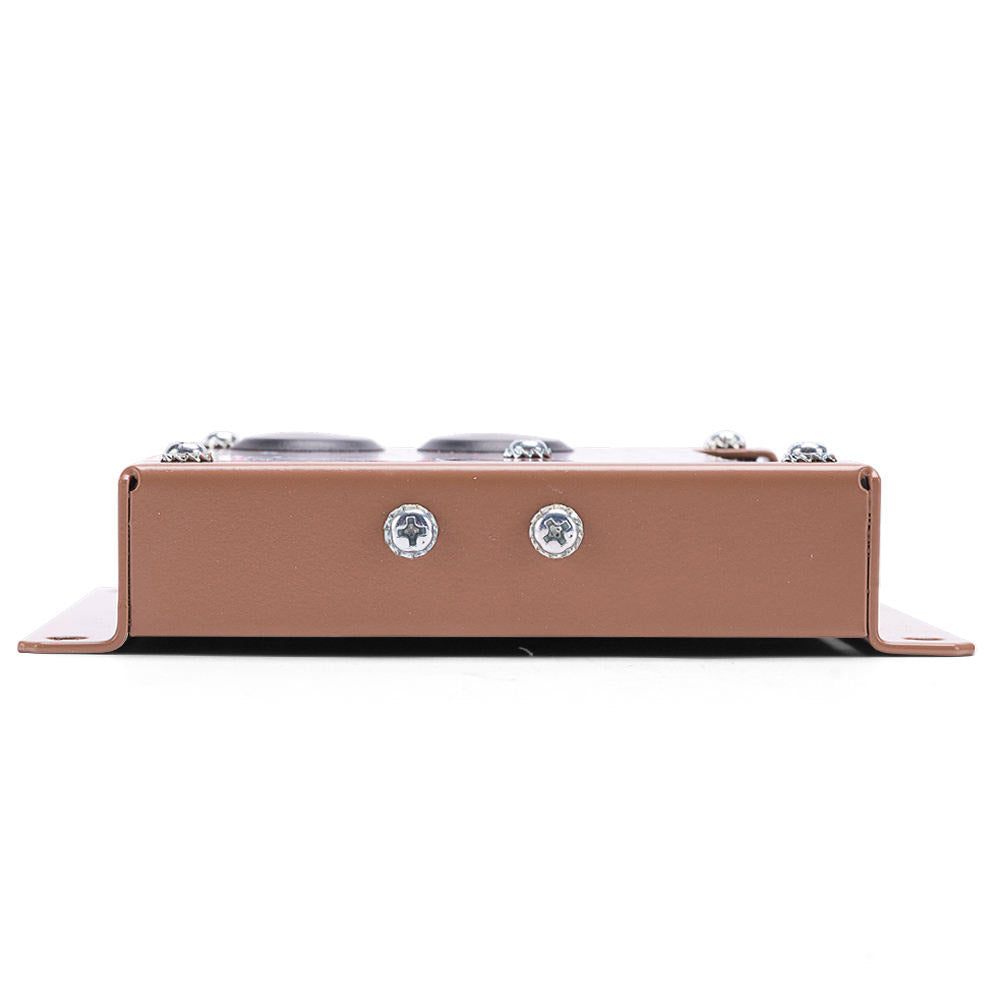

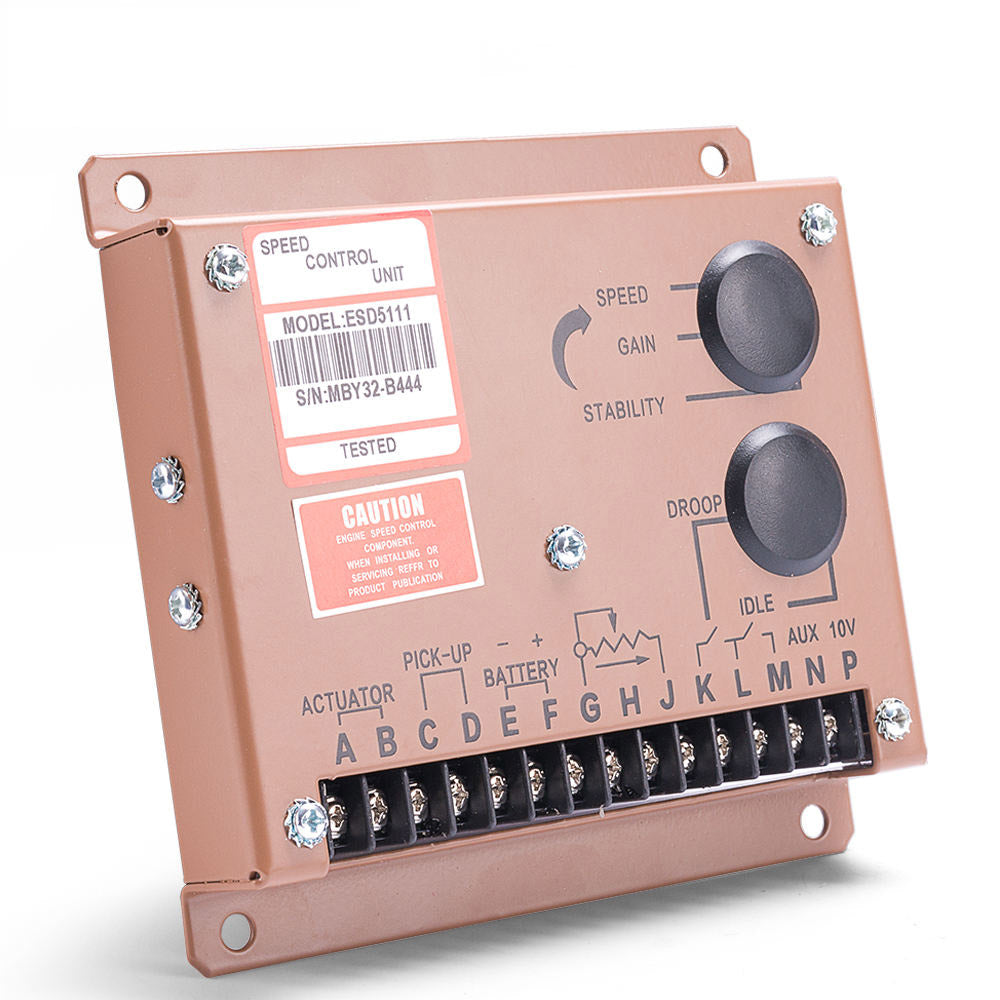

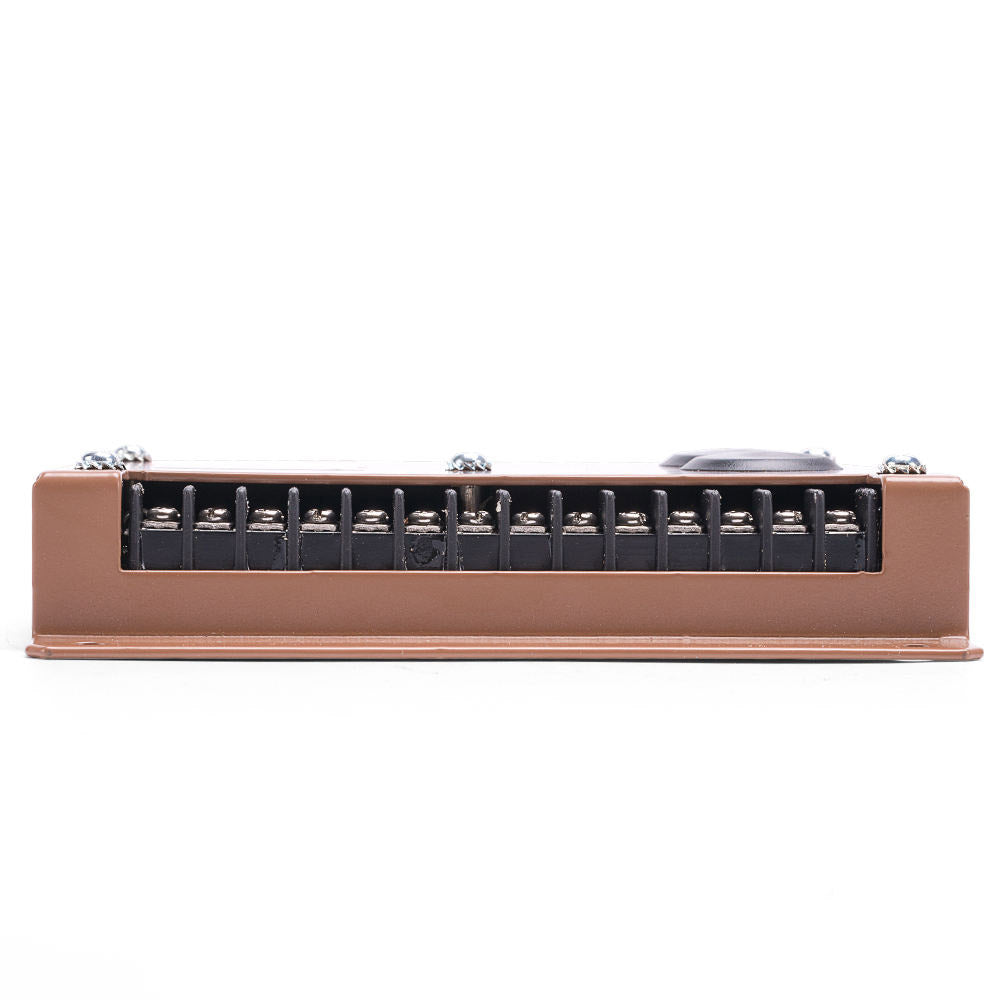

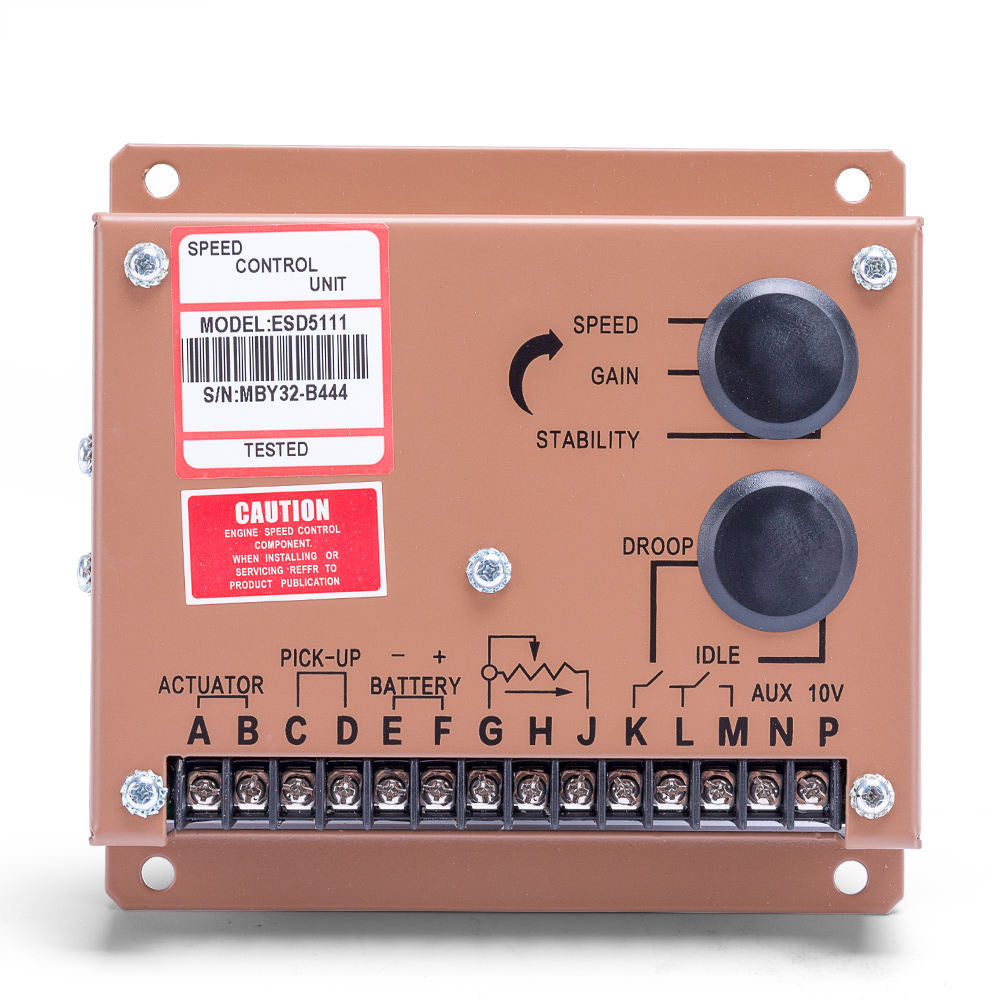

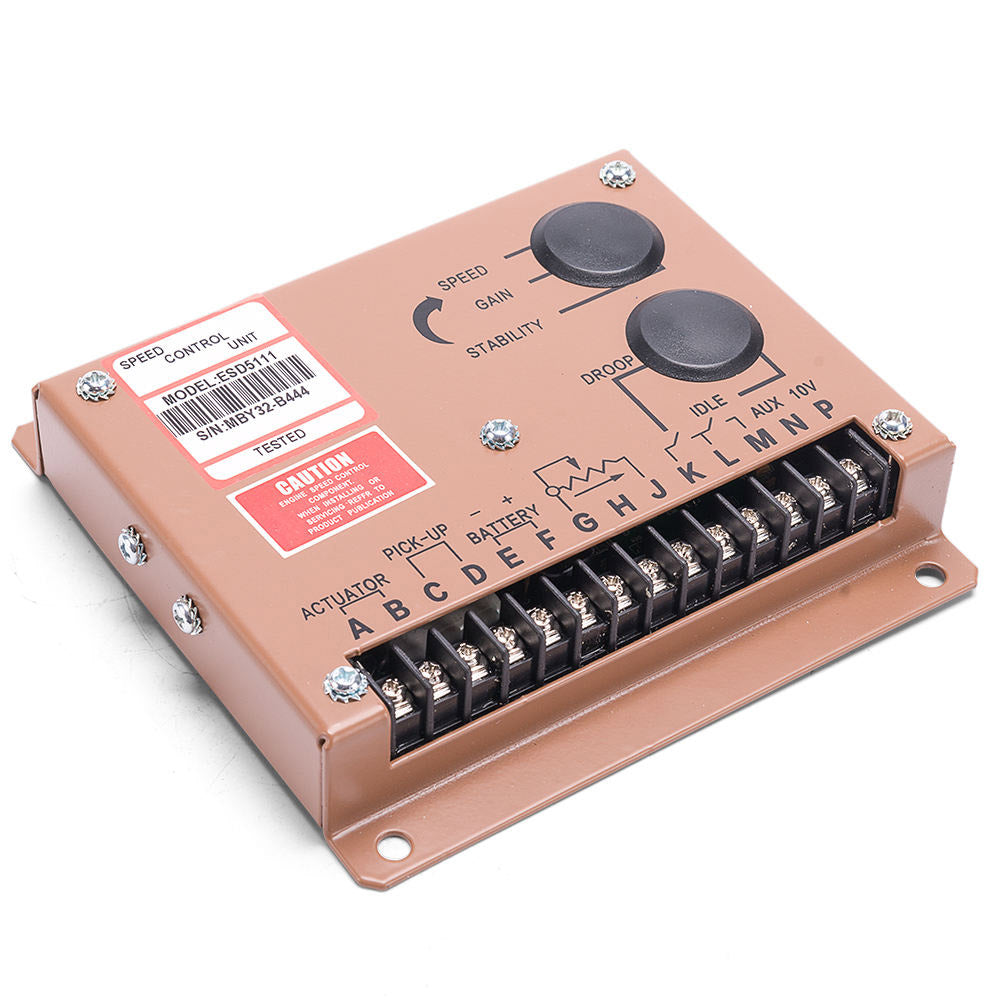

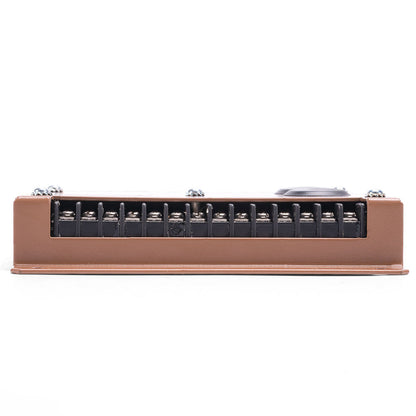

Generator Speed Control Unit Esd5111

Generator Speed Control Unit Esd5111

Free Shipping to 63 countries (USA, Canada, Japan, Taiwan, etc). 5% discount applies to 1 pcs, 10% discount to 2 pcs!

$56.00 USD
$56.00 USD
Sale Sold out
Shipping calculated at checkout.

The ESD5111 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.

Isochronous Operation/Steady Stability: +/-0.25% or better

Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)

Power Consumption: 50 ma continuous plus acutator current

Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous

Speed Controller ESD5111
Isochronous Operation/Steady State Stability
± 0.25% or better
Speed Range/Governor
1K-7.5K Hz continuous
Speed Drift with Temperature
± 1% Maximun
Idle Adjust CW
Min. 1200Hz. below set speed
Idle Adjust CCW
Min. 4100Hz. below set speed
Droop Range
1-5% regulation
Droop Adj. Max. (K-L Jumpered)
875Hz., ± 75Hz. per 1.0 A change
Droop Adj. Min. (K-L Jumpered)
15Hz., ± 6Hz. per 1.0 A change
Speed Trim Range
± 200Hz.
Remote Variable Speed Range
500 -7.5Hz. or any part thereof
Terminal Sensitivity
J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance

N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance

P: 10V DC Supply @ 20ma Max.

Speed Switch Adjustment Range
1000-10000Hz.
ENVIRONMENTAL

Ambient Operating Temperature Range
-40°c to +85°c
Relative Humidity
up to 95%
Storage Temperature
-55°c ~ 90°c
Shock
20-100HZ 500mm/Sec.
INPUT POWER

Supply
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)
Polarity
Negative Ground(Case Isolated)
Power Consumption
50mA continuous plus actuator current
Maximum Actuator Current at 25
10Amps continuous
Speed Sensor Signal
0.5-120 Volts RMS
PHYSICAL

Weight
630g
