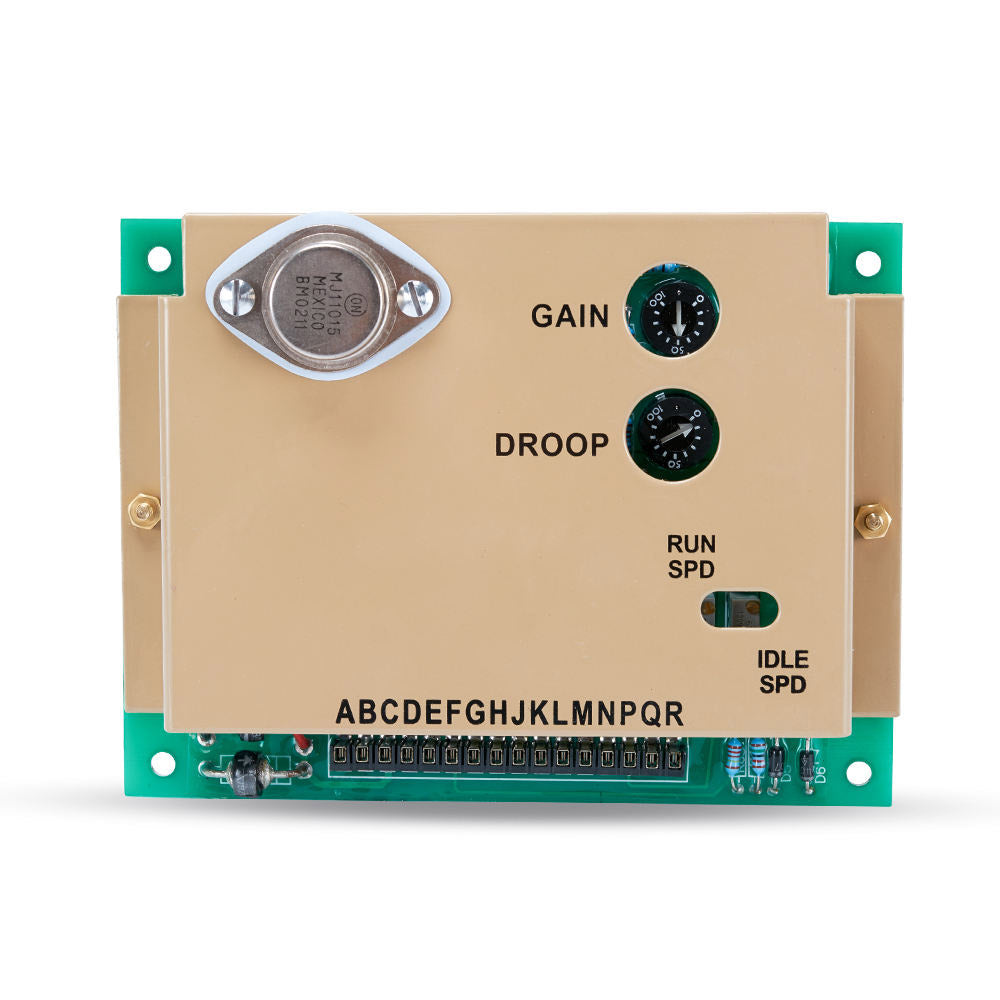

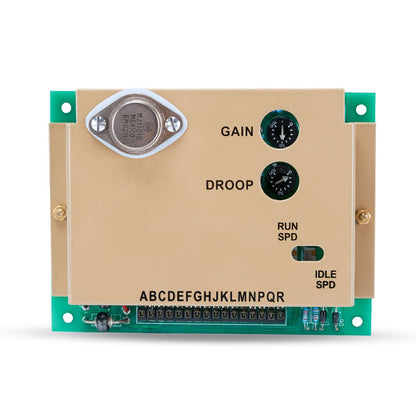

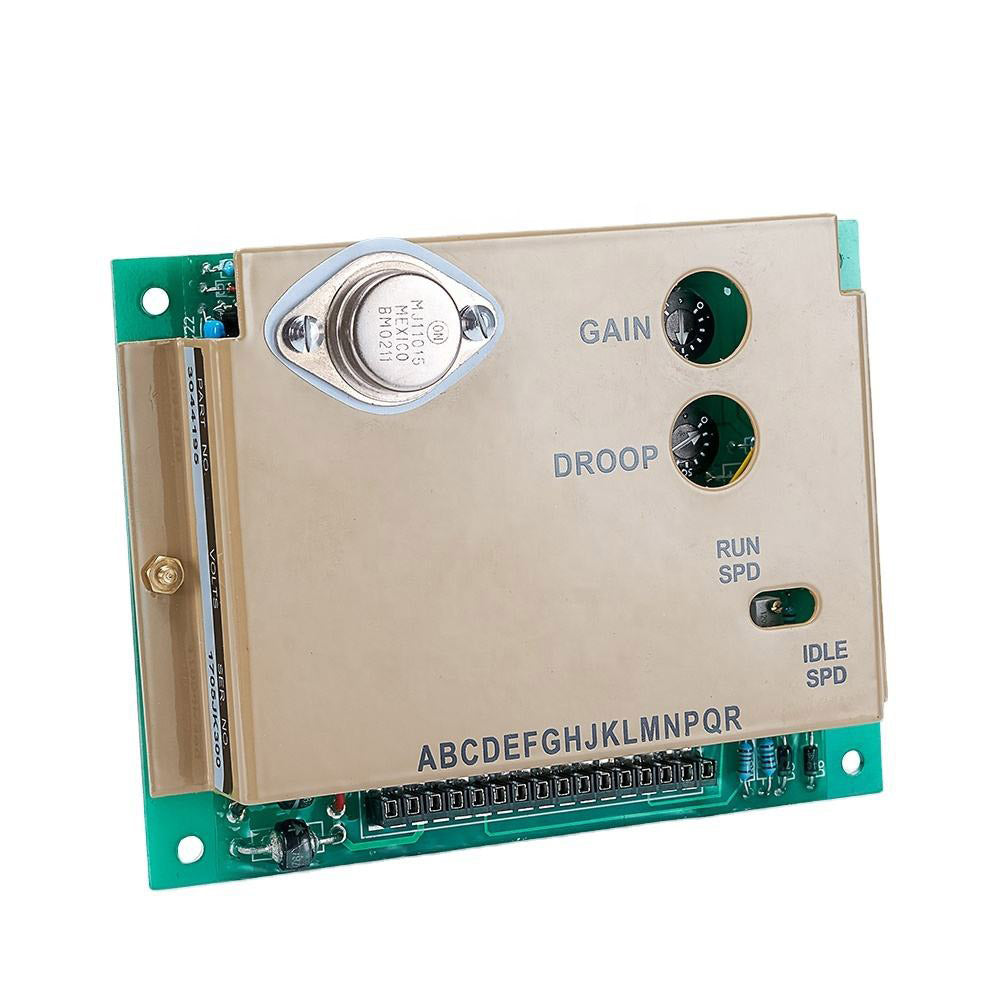

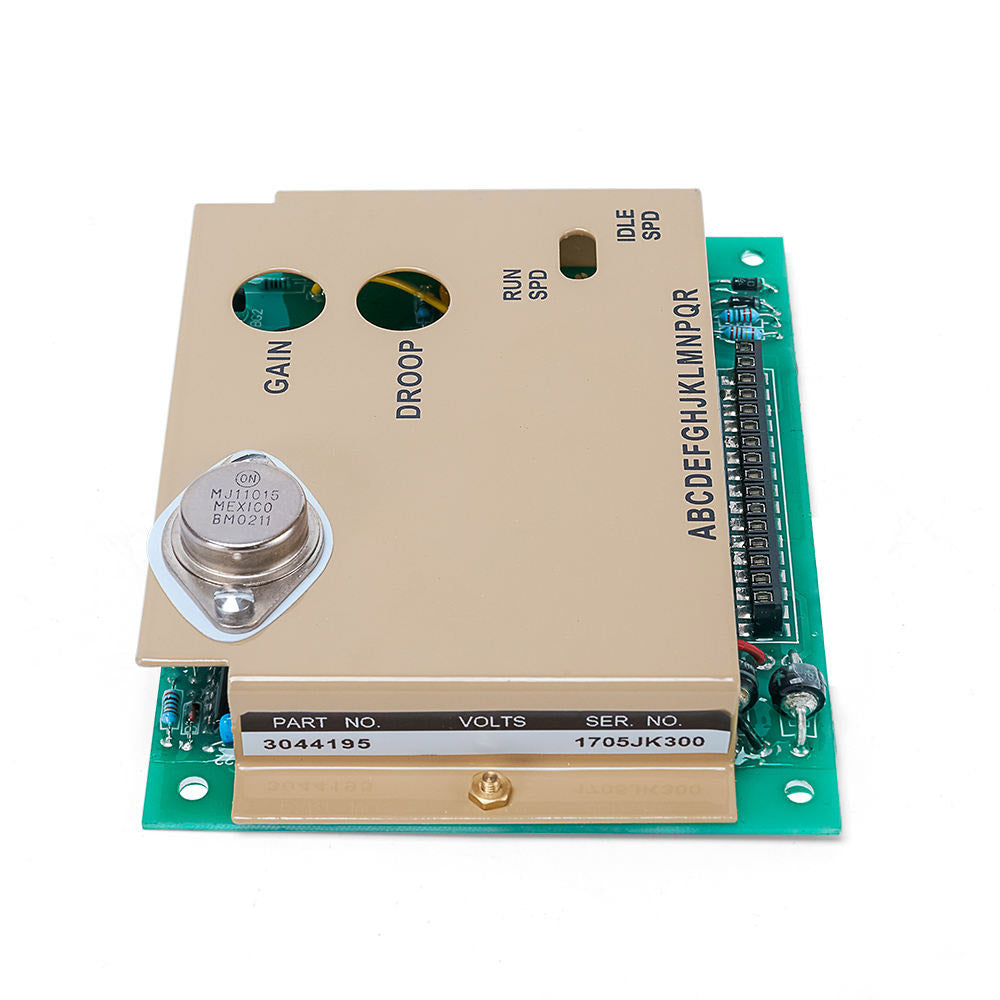

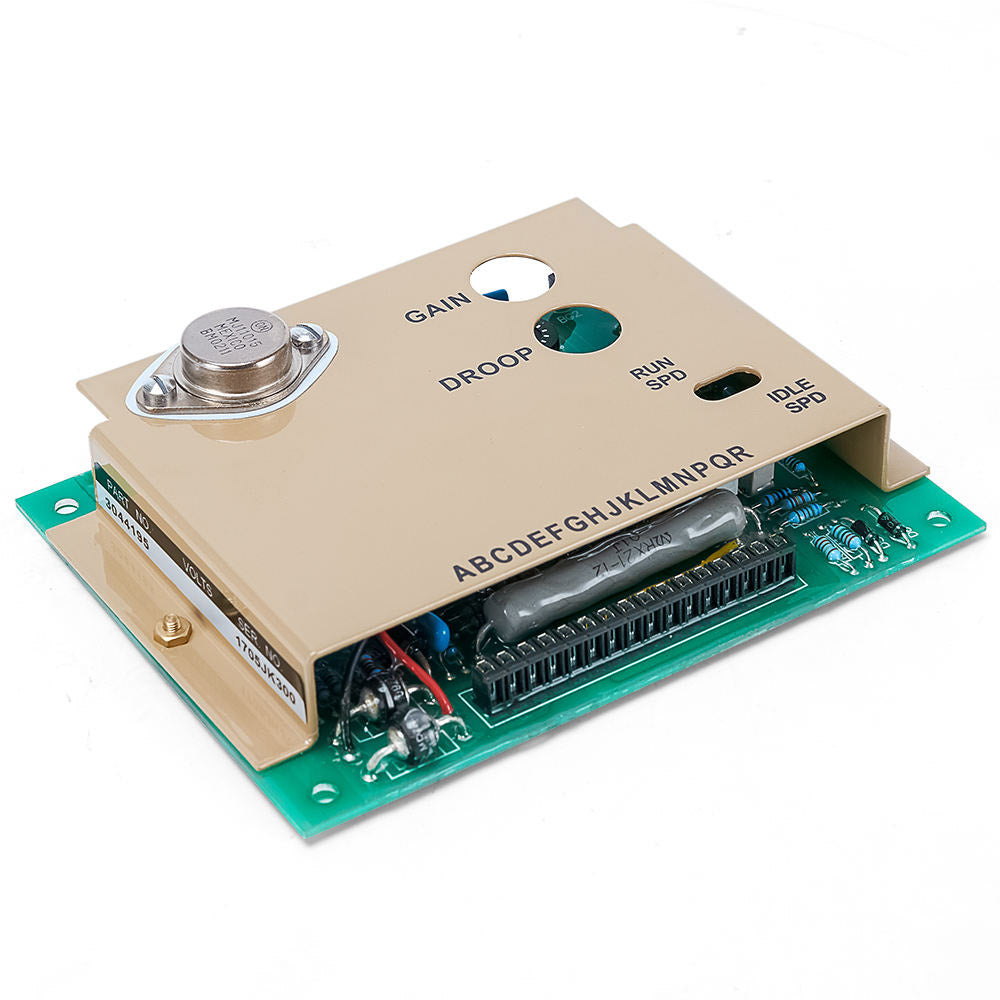

Generator Speed Controller 3044195 Generator Electronic Governor Control Board Plate
Generator Speed Controller 3044195 Generator Electronic Governor Control Board Plate
Free Shipping to 63 countries (USA, Canada, Japan, Taiwan, etc). 5% discount applies to 1 pcs, 10% discount to 2 pcs!
Regular price
$67.00 USD
Regular price
Sale price
$67.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Engine Governor EFC3044195
RPM Stability: <±0.25%
Speed Range: 1KHz ~ 6.5KHz
Thermal stability: Max ±0.7%
IDLE Regulation: 260 ±20Hz
DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., ±10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85
ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92
Shocking: 20-100HZ 500mm/Sec.
INPUT POWER SUPPLY
Voltage: 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
MPU
Signal: 2 ~ 120V RMS
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency
Speed Range: 1KHz ~ 6.5KHz
Thermal stability: Max ±0.7%
IDLE Regulation: 260 ±20Hz
DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., ±10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85
ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92
Shocking: 20-100HZ 500mm/Sec.
INPUT POWER SUPPLY
Voltage: 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
MPU
Signal: 2 ~ 120V RMS
NOTE: Above-Mentioned parameters are tested with a 3800Hz working frequency
